Designed with the future in mind

The Bosch DCI 200 diesel test bench is designed with the future in mind with its measurement system that has the ability to code and test passenger car and commercial vehicle common-rail injectors with the latest injection technologies such as Needle Closing Control (NCC) and Valve Closing Control (VCC) for EURO 5 as well as EURO 6 injectors.

Thanks to the short mounting and testing time, the DCI 200 offers you and your workshop outstanding test efficiency. A standard injector can be tested in less than 15 minutes.

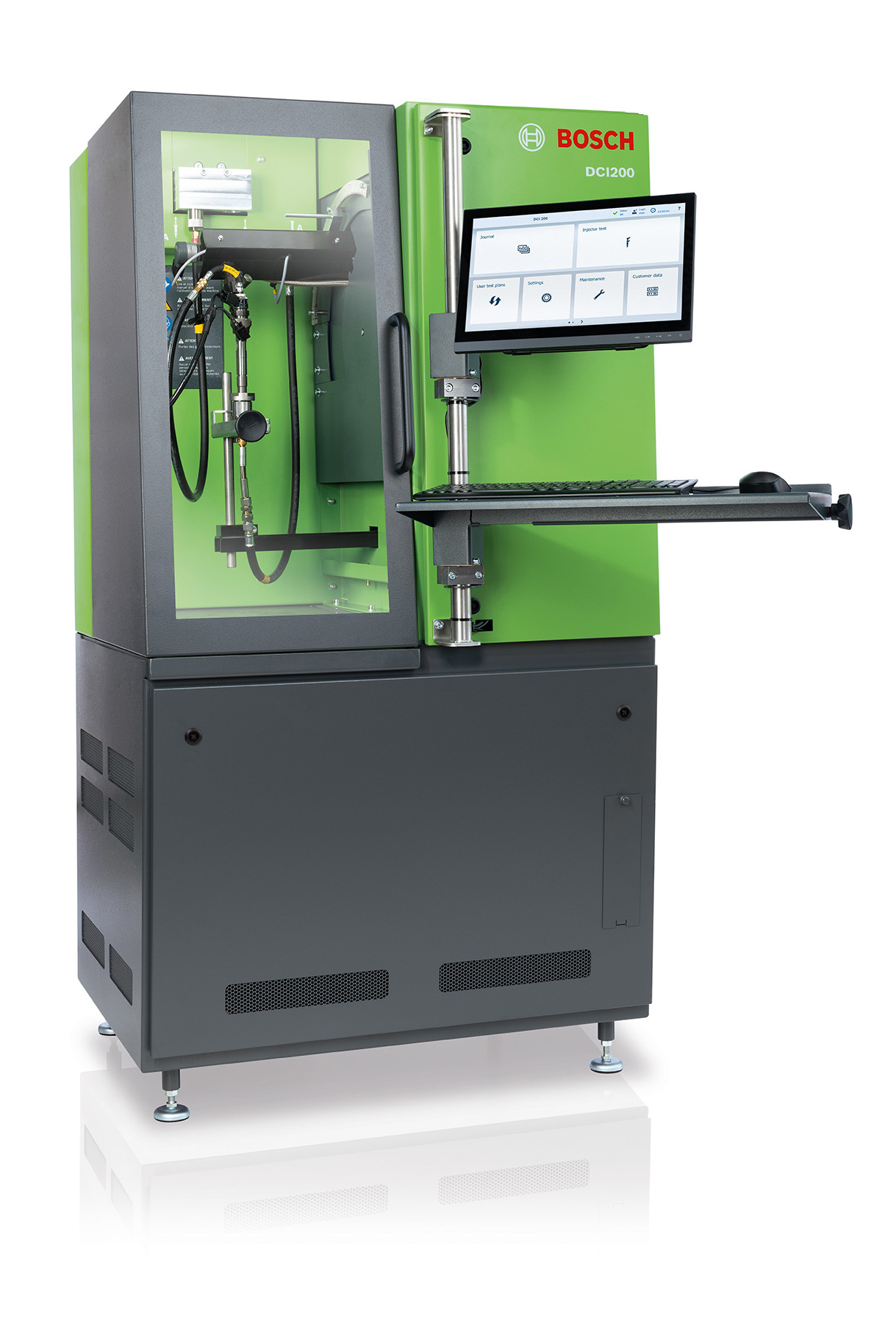

Designed with a tapered base, it allows the operator to stand closer to the test bench during mounting without diffraction. This is one of the many ergonomic features that make the DCI 200 so easy-to-use.

Scope of Delivery

1. Injector test bench DCI 200
2. High pressure pump CP4.1 with metering unit
3. Swiveling rail concept with 2 PCV (pressure control valve) and PLV (pressure limiting valve)
4. CRI accessory kit for solenoid and piezo common-rail injectors
5. Electric CRI connection lead (2, 3, 4 pin)
6. 15.6'' LCD Touchscreen display
7. Working area lightning for leak test evaluation
8. Operating instruction
9. Divinol ISO 4113 Calibration Oil
10. Installation, commissioning and user training on operations and maintenance on-site

Optional Kits

1. CRI 3rd party kit to test CR injectors of Denso, Delphi, VDO-Continental, Siemens
2. CRIN kit for light and heavy commercial vehicles
3. CRIN 4.2 kit for latest light and heavy commercial vehicles
4. Swiveling arm for monitor and tray for keyboard and mouse
5. Insert shelf
6. Holding device for BQS scanner
7. Adapters for CRIN injectors

Support

1. Accreditation as Bosch Diesel Module
2. LOCAL warranty from BoschPH and DieselKing - Bosch-authorized equipment service dealer
3. FREE technical support service within warranty period
4. Enrollment to the following certificate training courses:
   4.1. Common Rail Injector Stage 1 and 2 Repair
   4.2. ESI[tronic]/ ECU Diagnosis with KTS

Features and Benefits

Saving time through the fast setup and a testing time of 15 minutes.

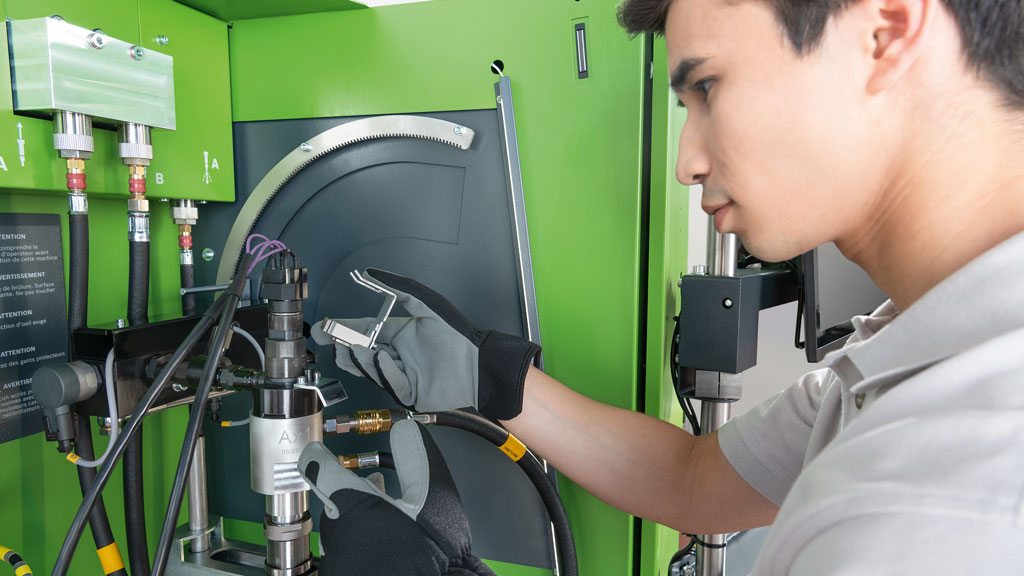

• High effectiveness through patented rotating rail concept – no vulnerable high pressure hoses required, lower maintenance cost and easier setup
• Higher quality, reliability and transparency for Bosch injectors thanks to fast and precise testing – including IMA/NIMA coding
• Capable of testing common-rail injectors with state-of-the-art VCC (Valve Closing Control) and NCC (Needle Closing Control) technologies for EURO 5 and EURO 6
• Elimination of the use of additional accessories thanks to automatic setting of the return back pressure
• Always current through regular online updates

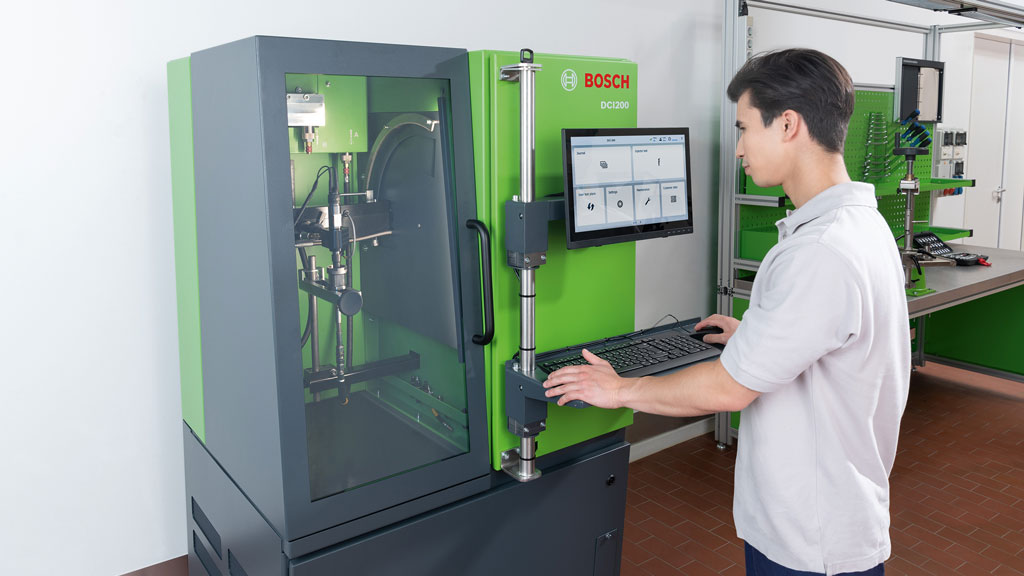

• Ergonomic design with the slanted lower part, allowing closer standing proximity and therefore improved working comfort at the test bench
• Modular retrofit kits for commercial vehicles and off-highway common-rail injectors – from Bosch and other manufacturers
• Configured for Philippine use

Stay way ahead of the competition. Invest only in Bosch diagnostic and repair equipment. Owning superior Bosch equipment now has never been so easy.
